ABB E-mobility

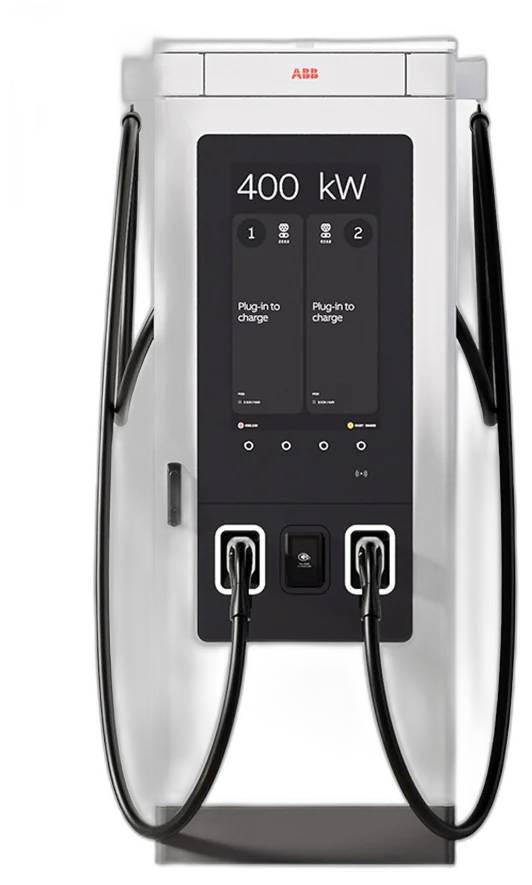

The A-Series in its biggest trim: 400 kW, 600 A liquid-cooled cables, dynamic sharing in 50 kW steps, and a 32-inch screen built for branding. Field-upgradable, so a site can buy the A200 and grow into this cabinet.
Specifications
| Input | 480 V, 3-phase, no neutral, 60 Hz |
|---|---|
| Max output | 400 kW (A200 200 kW, A300 300 kW, upgradable) |
| Nominal input current | 496 A at 400 kW; 383 A at 300; 255 A at 200 |
| Ports | 2 |
| Output voltage | 150 to 980 V DC |
| Max output current | 600 A continuous liquid-cooled CCS/NACS; 375 A air-cooled NACS |
| Load management | 50 kW granularity, 100 kW minimum on A400 |
| Efficiency | up to 97% |
| Power factor | over 0.99 |
| THD | under 3% |
| SCCR | 65 kA |
| Standby power | 156 W |
| Dimensions (H x W x D) | 88.8 x 31.1 x 31.9 in (2256 x 790 x 810 mm) |
|---|---|
| Weight | 1,610 lb (A400); 1,235 lb (A200) |
| Protocol | OCPP 1.6J and 2.0.1 |
| Connectivity | 3G/4G/5G, Ethernet, optional second modem |
| Vehicle protocols | DIN 70121, ISO 15118-2/-3, Autocharge, Plug & Charge; 15118-20 in development |
| Payment | RFID, credit/debit card, app |
| Display | 32-inch HD, 1300 nits, 4 buttons |
| Cables | 15.7 or 22.9 ft, two self-retracting swing arms |
| Operating temp | -22 to 131 °F with derating |
| Enclosure and impact | IP54, NEMA 3R in development, IK10, aluminum body |
| Noise | 65 dB(A) at 1 m, full power |
| Manufactured | USA and Europe; 10-year expected lifespan |
Output settings
The output can be set below the maximum to fit the site’s service. From the datasheet.
| Output | Max draw |
|---|---|
| 400 kW | 496 A |
| 300 kW | 383 A |
| 200 kW | 255 A |
Certifications and standards
UL 2202, UL 2231-1, UL 2231-2, CSA 22.2 No. 346:22, CTEP/NTEP metering, FCC 47 CFR Part 15B Class A. A200 and A300 are ENERGY STAR.
