Alpitronic

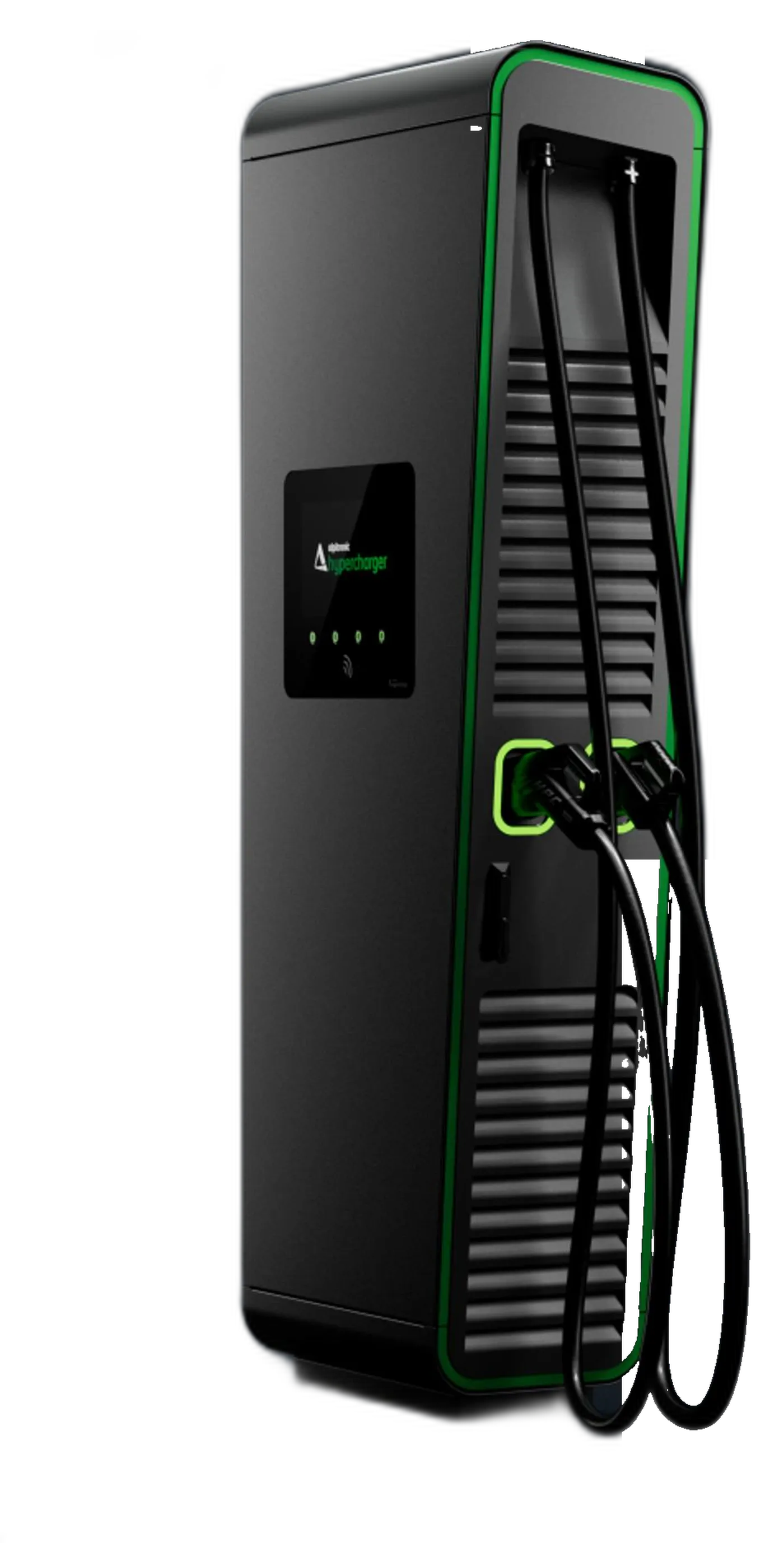

The narrow one. A 16-inch-wide cabinet with up to 200 kW across two cars, 600 A on a cable, 97.5% efficiency, and power in 50 kW steps that can follow a site's limit over OCPP. Built on the same Power-Stack modules as the HYC400.
Specifications
| Input | 480 V, 3-phase, no neutral, 60 Hz |
|---|---|
| Max output | 200 kW (100 kW per Power-Stack, two stacks) |
| Nominal input current | 240 A at 200 kW |
| Ports | 2 simultaneous |
| Output voltage | 150 to 1000 V DC |
| Max output current | 300 A per stack, 600 A max |
| Load management | 50 kW granularity; static limit or dynamic via OCPP/Modbus |
| Efficiency | up to 97.5% at full load |
| Power factor | over 0.99 |
| THD | under 5% |
| SCCR | 65 kA |
| Cable lengths | 11.5, 16.4 or 25 ft; swing-arm cable management |
| Dimensions (H x W x D) | 86 x 16 x 26 in (2185 x 420 x 663 mm) |
|---|---|
| Weight | 717 to 1,019 lb depending on configuration |
| Protocol | OCPP 1.6 and 2.0.1, Modbus, API |
| Connectivity | Dual SIM 4G LTE, 10/100 Ethernet |
| Vehicle protocols | DIN 70121, ISO 15118, Autocharge, Plug and Charge, CHAdeMO 1.2 |
| Payment | RFID/NFC; credit card reader optional (Payter, Nayax), EMV, tap to pay |
| Display | 15.6-inch, 4 buttons, RGB connector status, GUI in 27 languages |
| Operating temp | -22 to 131 °F |
| Enclosure and impact | NEMA 3R (IP54), IK10 |
| Noise | under 52 dBA at 10 ft |
| Standby power | 43 W |
| Accessibility | meets ADA height and reach |
Output settings
The output can be set below the maximum to fit the site’s service. From the datasheet.
| Output | Max draw |
|---|---|
| 200 kW | 240 A |
| 150 kW | 180 A |
| 100 kW | 120 A |
Certifications and standards
UL 2202, UL 2231-1, UL 2231-2, CSA C22.2 No. 346.22, No. 281.1-12, No. 281.2-12 (file E515867), CTEP metering No. 5966-24, FCC Part 15B Class A, NEC Article 625.
Specs transcribed from the Alpitronic HYC200 UL datasheet V1. The Charge Sheet has no relationship with Alpitronic. Specs come from the linked datasheet. The Charge Sheet takes no fee for this listing.
