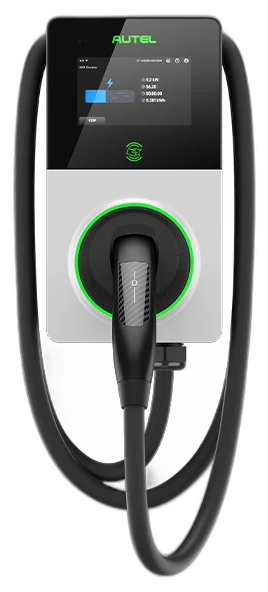

Autel MaxiCharger AC 50A (A12)
Autel MaxiCharger AC 50A (A12): Level 2, 50 A, up to 12 kW per port, 1 port. Specs, output settings and certifications from the manufacturer datasheet.
Built by Aatish Patel, founder of XCharge North America
All chargers / MaxiCharger AC 50A (A12)
Autel
Commercial Level 2 at 50 A on a single phase, with a 5-inch screen or a plain digital display, NTEP metering, and load management across a whole lot over Wi-SUN. The pedestal is a separate line item.
Specifications
| Input | 208/240 V single phase, 50/60 Hz; HiLeg delta supported |
|---|---|
| Max output | 12 kW (240 V x 50 A); adjustable 6 to 50 A |
| Ports | 1 |
| Connector | J1772 or NACS |
| Metering | 1%, NTEP/CTEP certified |
| Ground fault | 20 mA CCID |
| Vehicle protocols | ISO 15118-2/-20, Plug & Charge, Autocharge |
| Dimensions (W x D x H) | 6.7 x 4.6 x 12.4 in |
|---|---|
| Weight | 11.7 lb; pedestal 15 lb (ADA, sold separately) |
| Protocol | OCPP 1.6J, 2.0.1 |
| Connectivity | 4G, Wi-Fi, Ethernet, RS485, Wi-SUN |
| Payment | app, RFID, third-party apps |
| Display | 5-inch touch screen or digital display |
| Cable length | 19 or 25 ft |
| Operating temp | -31 to 122 °F, derating above 113 °F |
| Enclosure and impact | NEMA 3S, IK10 |
| Lifespan and warranty | 10 years; 5 years on the body, 1 on cable and connector |
Certifications and standards
UL 2594, UL 2231-1, UL 2231-2, UL 1998, CSA C22.2 No. 280, FCC Part 15 Class B, ENERGY STAR, NEC Article 625.
Specs transcribed from the Autel MaxiCharger AC 50A datasheet. The Charge Sheet has no relationship with Autel. Specs come from the linked datasheet. The Charge Sheet takes no fee for this listing.
