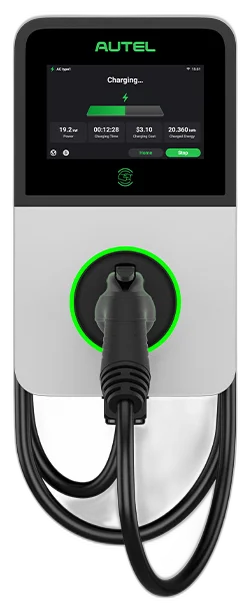

Autel MaxiCharger AC Pro 80A
Autel MaxiCharger AC Pro 80A: Level 2, 80 A, up to 19.2 kW per port, 1 port. Specs, output settings and certifications from the manufacturer datasheet.
Built by Aatish Patel, founder of XCharge North America
All chargers / MaxiCharger AC Pro 80A
Autel
The fast end of Level 2: 80 A, 19.2 kW, on a 240 V single phase. A 7-inch screen, one-click install, and Wi-SUN load balancing across up to 200 chargers. Five-year warranty on the body.
Specifications
| Input | 208/240 V single phase, 50/60 Hz; HiLeg delta supported |
|---|---|
| Max output | 19.2 kW (240 V x 80 A); adjustable 6 to 80 A |
| Ports | 1 |
| Connector | J1772 or NACS |
| Metering | 1%, NTEP/CTEP certified |
| Ground fault | 20 mA CCID |
| Vehicle protocols | ISO 15118-2/-20, Plug & Charge, Autocharge |
| Dimensions (H x W x D) | 14.5 x 8.5 x 5.1 in (368 x 216 x 130 mm) |
|---|---|
| Weight | 20.7 lb |
| Mounting | wall, or ADA pedestal sold separately |
| Protocol | OCPP 1.6J, 2.0.1, 2.1 upgradable |
| Connectivity | 4G, Wi-Fi, Ethernet, RS485, Wi-SUN |
| Payment | app, RFID, third-party apps; POS kiosk option |
| Display | 7-inch touch screen or LED |
| Cable length | 19 or 25 ft |
| Operating temp | -31 to 131 °F, derating above 113 °F |
| Enclosure and impact | NEMA 4X, IK10 |
| Lifespan and warranty | 10 years; 5 years on the body, 1 on cable and connector |
Certifications and standards
UL 2594, UL 2231-1, UL 2231-2, UL 1998, CSA C22.2 No. 280, FCC Part 15 Class B, ENERGY STAR, OpenADR 2.0b, NEC Article 625.
Specs transcribed from the Autel MaxiCharger AC Pro 80A datasheet. The Charge Sheet has no relationship with Autel. Specs come from the linked datasheet. The Charge Sheet takes no fee for this listing.
