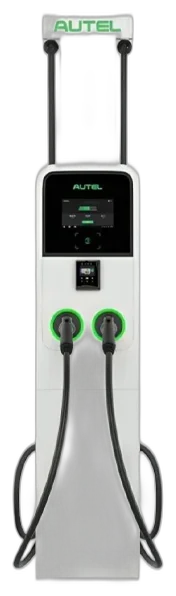

Autel MaxiCharger AC Ultra
Autel MaxiCharger AC Ultra: Level 2, dual port, 2 x 80 A, up to 19.2 kW per port, 2 ports.
Built by Aatish Patel, founder of XCharge North America
All chargers / MaxiCharger AC Ultra
Autel
Two 19.2 kW ports in one pedestal with an 8-inch ad screen. Power sharing between the ports means it can run on less than two full circuits. Priced per pedestal, so the planner splits it across two ports.
Specifications
| Input | 208 or 240 V single phase, 60 Hz |
|---|---|
| Max output | 2 x 19.2 kW (240 V x 80 A per port); adjustable 6 to 80 A |
| Ports | 2, with power sharing |
| Connector | J1772, 16 or 25 ft |
| Metering | 1% from 1% to full scale |
| Ground fault | 20 mA CCID |
| Dimensions (H x W x D) | 24.6 x 12.6 x 6.7 in (625 x 320 x 170 mm) head; 74 in on pedestal |
|---|---|
| Mounting | wall or floor pedestal, one-piece |
| Protocol | OCPP 1.6J, upgradable to 2.0.1 |
| Connectivity | 4G, Wi-Fi, Ethernet, Bluetooth, RS485 |
| Payment | app, RFID, credit card optional |
| Display | 8-inch touch screen |
| Operating temp | -40 to 122 °F |
| Enclosure | NEMA 3R |
| Warranty | 36 months, extensions available |
Certifications and standards
UL 2594, UL 2231-1, UL 2231-2, UL 916, CSA C22.2, FCC Part 15 Class B, ENERGY STAR, OpenADR 2.0b, NEC Article 625.
Specs transcribed from the Autel MaxiCharger AC Ultra datasheet. The Charge Sheet has no relationship with Autel. Specs come from the linked datasheet. The Charge Sheet takes no fee for this listing.
