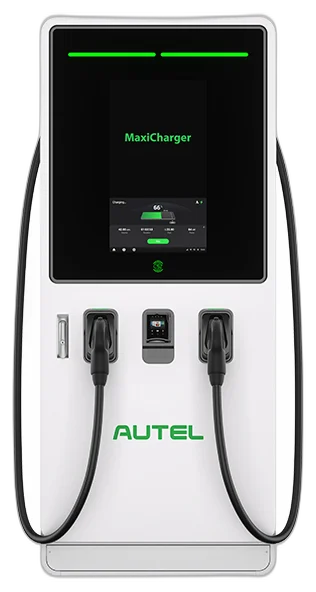

Autel MaxiCharger DC Fast
Autel MaxiCharger DC Fast: DC fast charger, 480 V, 60 to 240 kW, up to 240 kW, 2 ports.
Built by Aatish Patel, founder of XCharge North America
All chargers / MaxiCharger DC Fast
Autel
One cabinet, ten power ratings. Ordered at anything from 60 to 240 kW in 20 kW steps, with a 27-inch ad screen on the front and stainless housing. The workhorse of Autel's DC line.
Specifications
| Input | 480 V, 3-phase, no neutral, 60 Hz |
|---|---|
| Max output | 240 kW (ordered 60 to 240 kW in 20 kW steps) |
| Max input current | 349 A at 240 kW; 91 A at 60 kW (see table) |
| Ports | 2 |
| Output voltage | 150 to 950 V DC |
| Max output current | 200 A CCS1; 300 A CCS1 Boost (400 A max) |
| Efficiency | 96% or better |
| Power factor | 0.98 or better |
| THD | under 5% |
| SCCR | 65 kA |
| Standby power | 80 W |
| Dimensions (H x W x D) | 76.8 x 32.3 x 23.6 in (27.6 in deep for 140 kW and up) |
|---|---|
| Weight | 1,143 lb at 60 kW to 1,460 lb at 240 kW |
| Protocol | OCPP 1.6J, 2.0.1 upgradable |
| Connectivity | 4G, Wi-Fi, Ethernet |
| Vehicle protocols | ISO 15118 Plug & Charge, DIN 70121 |
| Payment | QR, RFID, credit card optional |
| Display | 27-inch touch screen (15.6 optional) |
| Cable length | 15 ft, 20 or 25 optional |
| Operating temp | -31 to 131 °F, derating above 122 °F |
| Enclosure and impact | NEMA 3R, IK10, stainless 430 |
| Noise | under 65 dB at 1 m |
| Warranty | 24 months, extensions available |
Output settings
The output can be set below the maximum to fit the site’s service. From the datasheet.
| Output | Max draw |
|---|---|
| 240 kW | 349 A |
| 220 kW | 321 A |
| 200 kW | 292 A |
| 180 kW | 263 A |
| 160 kW | 234 A |
| 140 kW | 206 A |
| 120 kW | 177 A |
| 100 kW | 148 A |
| 80 kW | 120 A |
| 60 kW | 91 A |
Certifications and standards
UL 2202, UL 2231-1, UL 2231-2, NEC Article 625, CSA C22.2 No. 107.1-16, FCC Part 15 Class A (Class B optional).
Specs transcribed from the Autel MaxiCharger DC Fast datasheet. The Charge Sheet has no relationship with Autel. Specs come from the linked datasheet. The Charge Sheet takes no fee for this listing.
