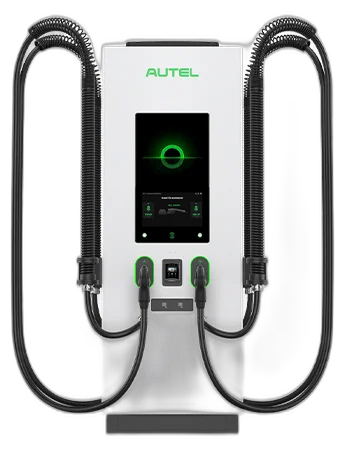

Autel MaxiCharger DH480
Autel MaxiCharger DH480: All-in-one high-power DC charger, 480 V, up to 480 kW, 2 ports.
Built by Aatish Patel, founder of XCharge North America
All chargers / MaxiCharger DH480
Autel
All-in-one at 480 kW: two or four outputs from one cabinet, 500 A liquid-cooled cables, and power adjustable down to 40 kW. Sold at 320, 400 or 480 kW.
Specifications
| Input | 480 V, 3-phase, no neutral, 60 Hz, two routes |
|---|---|
| Max output | 480 kW (320 and 400 kW versions) |
| Minimum adjustable power | 40 kW |
| Outputs | 2 or 4 |
| Output voltage | 150 to 1000 V DC |
| Max output current | 500 A liquid-cooled (650 A max); 400 A air-cooled (500 A max) |
| Efficiency | 96% |
| Power factor | 0.99 or better |
| THD | under 5% |
| Standby power | under 85 W |
| Dimensions (W x D x H) | 30.8 x 30.8 x 84.6 in (782 x 782 x 2150 mm) |
|---|---|
| Protocol | OCPP 1.6J, 2.0.1 optional |
| Connectivity | Dual SIM 4G/5G, Wi-Fi, Ethernet |
| Vehicle protocols | ISO 15118 Plug & Charge, DIN 70121 |
| Payment | Nayax, Payter, PAX, Castles readers; RFID; app; QR |
| Display | 15.6-inch touch screen (8 or 27 optional) |
| Cable length | 16.4 ft, 24.6 ft optional; cable management standard |
| Operating temp | -31 to 131 °F |
| Enclosure | NEMA 3S; ADA height and reach |
| Noise | under 55 dB, silent model |
| Warranty | 24 months, extensions available |
Certifications and standards
UL 2202, UL 2231-1, UL 2231-2, NEC Article 625, CSA C22.2 No. 107.1-16, UL/cUL, FCC Class A.
Specs transcribed from the Autel MaxiCharger DH480 datasheet. The Charge Sheet has no relationship with Autel. Specs come from the linked datasheet. The Charge Sheet takes no fee for this listing.
