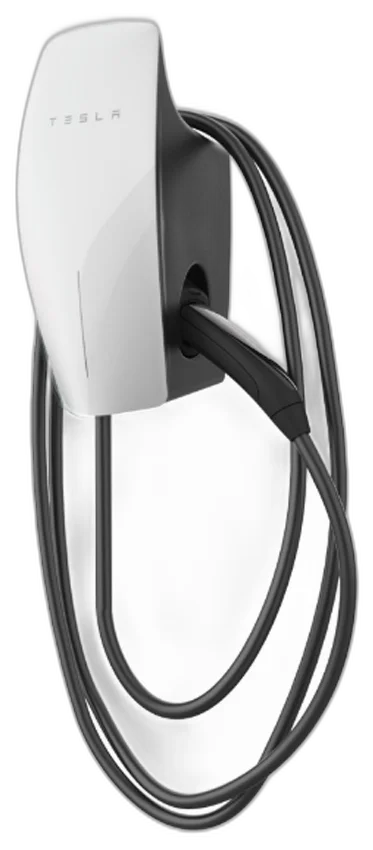

Tesla Universal Wall Connector
Tesla Universal Wall Connector: Level 2, 48 A, up to 11.5 kW per port, 1 port. Specs, output settings and certifications from the manufacturer datasheet.
Built by Aatish Patel, founder of XCharge North America
All chargers / Universal Wall Connector
Tesla
Tesla's wall box with a J1772 adapter docked on the side, so it charges anything. 48 A, Wi-Fi only, no OCPP, no card reader. Fine for a hotel that bills through the room or gives it away; not a networked commercial charger.
Specifications
| Input | 200 to 240 V single phase, 50/60 Hz |
|---|---|
| Max output | 11.5 kW (240 V x 48 A); adjustable by installer |
| Ports | 1 |
| Connector | NACS, with J1772 adapter |
| Ground fault | integrated CCID20 |
| SCCR | 14 kA |
| Dimensions | 13.6 x 6.1 x 5.9 in |
|---|---|
| Weight | 15 lb with bracket |
| Protocol | none (Wi-Fi to Tesla; no OCPP) |
| Connectivity | Wi-Fi 2.4 GHz |
| Payment | none built in |
| Cable length | 24 ft (13.1 ft version available) |
| Operating temp | -22 to 122 °F |
| Enclosure | Type 3R |
Certifications and standards
cULus E351001, UL 2594, UL 2231, ENERGY STAR (US).
Specs transcribed from the Tesla Universal Wall Connector datasheet, 2023-12-12. The Charge Sheet has no relationship with Tesla. Specs come from the linked datasheet. The Charge Sheet takes no fee for this listing.
