XCharge North America

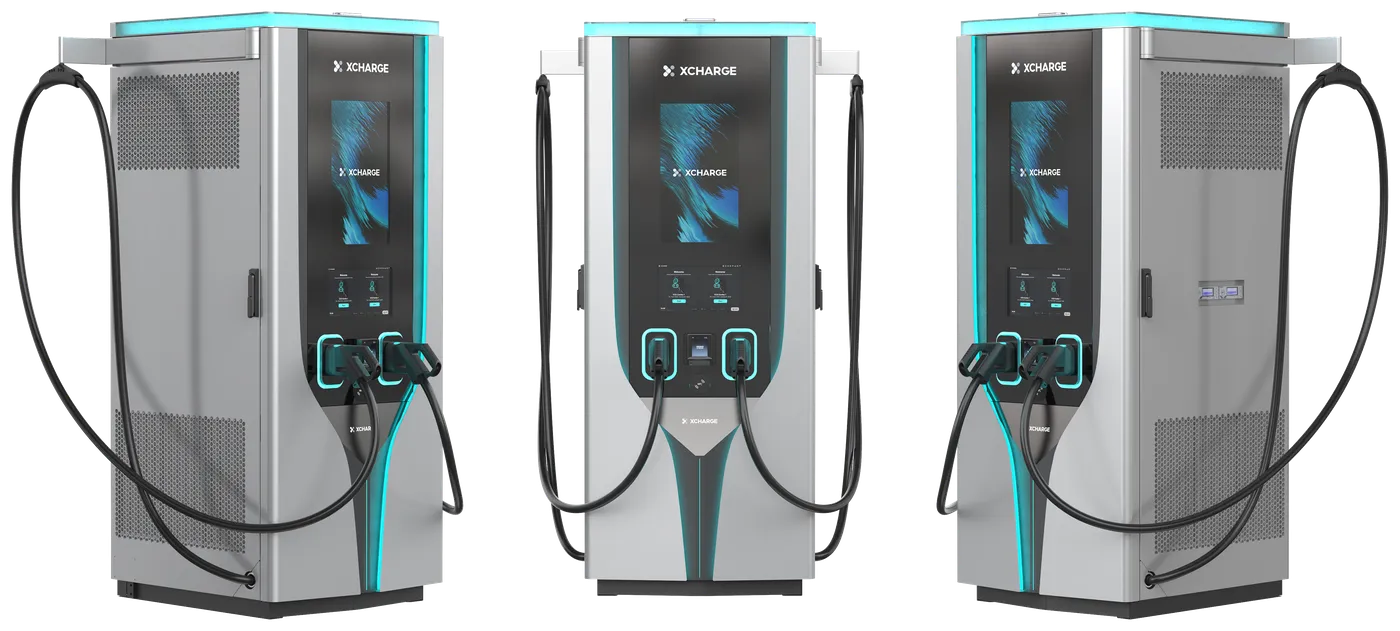

Corridor power in one cabinet. Up to 400 kW split between two cars in 40 kW steps, liquid-cooled cables at 500 A, and a 21.5-inch screen the operator can sell ads on. Barrier-free layout that meets ADA.
Specifications
| Input | 480 V, 3P+N, ±15%, 50/60 Hz |
|---|---|
| Max output | 400 kW |
| Ports | 2, CCS1 or NACS |
| Output voltage | 200 to 1000 V DC |
| Max output current | 500 A liquid-cooled cable, 400 A air-cooled |
| Power allocation | 120-40-40-40-40-120 kW modules, 40 kW steps |
| Cable length | 18 ft (5.5 m) |
| Efficiency | 94% or better |
| THD | under 5% |
| Metering | DC meter, AC input meter |
| Dimensions (L x W x H) | 2.62 x 3 x 6.5 ft (800 x 900 x 1992 mm) |
|---|---|
| Weight | about 1,500 lb |
| Protocol | OCPP 1.6J and 2.0.1, Modbus TCP |
| Connectivity | Dual 4G LTE, Ethernet |
| Payment | RFID, QR, credit card (Payter, Nayax, IDTech), ISO 15118 Plug & Charge |
| Displays | 13.3-inch HMI touch, 21.5-inch 1080p advertising |
| Operating temp | -31 to 122 °F |
| Ingress and impact | IP54, IK10 |
| Noise | under 70 dB at 1 m, silent mode available |
| Cyber security | TLS 1.3 |
Certifications and standards
UL 2202, ISO 15118, DIN 70121, DIN 18040-3 (barrier-free), IEC 61851-1/-23/-24, IEC 62196-3. ADA-compliant connector and HMI height (85 to 105 cm).
Specs transcribed from the XCharge C7 HyperX datasheet. Aatish Patel co-founded XCharge North America and left the company in September 2026. Specs come from the linked datasheet, not from him. The Charge Sheet takes no fee for this listing.
