XCharge North America GridLink XL

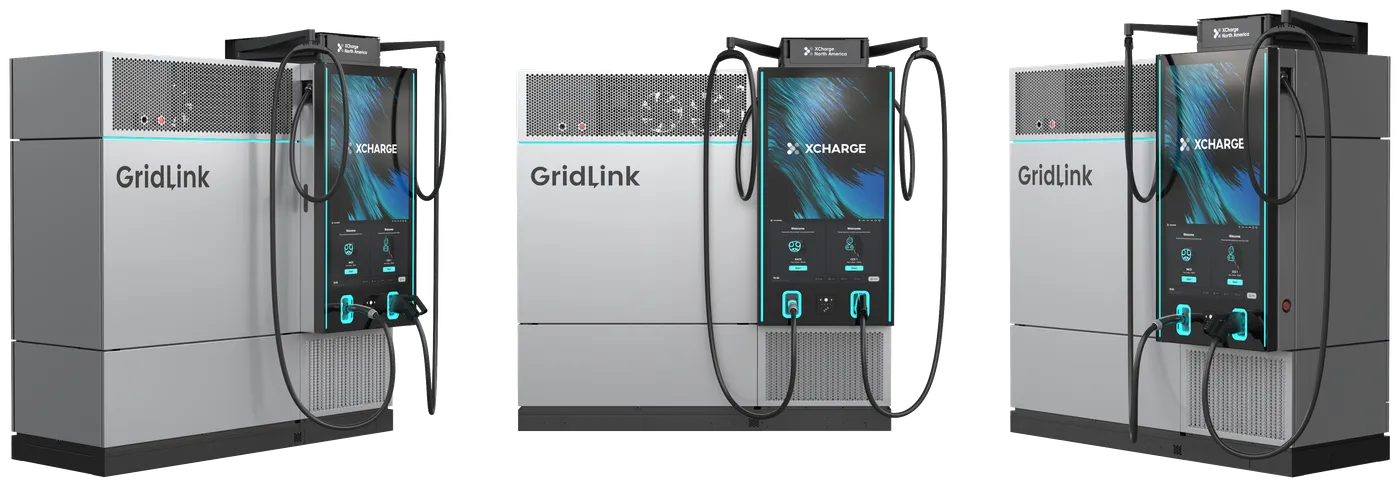

XCharge North America GridLink XL: Battery-integrated DC charger, liquid-cooled, up to 300 kW, 2 ports.
Built by Aatish Patel, founder of XCharge North America
All chargers / GridLink XL
XCharge North America
The same battery-backed cabinet with liquid-cooled power modules: 300 kW to cars, 120 kW bidirectional to the grid, and 60 kW of direct solar. For a hub or depot that wants corridor power on a feed the utility can actually deliver.
Specifications
| Input | 480 V, 3-phase, 60 Hz (208 V up to a 39 kVA feed) |
|---|---|
| Grid feed | 18 to 135 kVA, adjustable; 120 kW rectifier |
| Max output | 300 kW DC (180 kW from battery + 120 kW grid) |
| Ports | 2, CCS1 or NACS, 400 A continuous |
| Output voltage | 300 to 1000 V DC constant power |
| Battery | 215 kWh LFP (L280K cells), 2 x 215 kWh option |
| Battery charge / discharge | 0.6C / 1C, 94.5% round-trip |
| Battery-to-grid | 2 x 60 kW bidirectional, UL 1741SB, IEEE 1547 |
| Off-grid | charges EVs and powers AC loads during outages |
| Solar | 60 kW DC direct, 300 to 900 V, MPPT |
| Dimensions (W x D x H) | 12.05 x 3.24 x 7.72 ft |
|---|---|
| Weight | see datasheet (air-cooled unit is 7,936 lb) |
| Cooling | liquid-cooled power modules and battery packs, built-in water tank |
| Protocol | OCPP 1.6J and 2.0.1, ISO 15118 Plug & Charge |
| Connectivity | LTE, GSM, LAN |
| Payment | RFID, credit card |
| Display | 55-inch touch screen |
| Operating temp | -22 to 131 °F |
| Ingress | IP54 |
| Fire safety | UL 9540A, NFPA 855, on-board suppression, gas sensors per pack |
Output settings
The output can be set below the maximum to fit the site’s service. From the datasheet.
| Output | Max draw | Breaker |
|---|---|---|
| 300 kW | 188 A | 250 A |
| 280 kW | 163 A | 225 A |
| 255 kW | 131 A | 175 A |
| 230 kW | 99 A | 125 A |
| 210 kW | 73 A | 100 A |
| 200 kW | 61 A | 80 A |
| 190 kW | 48 A | 60 A |
Certifications and standards
UL 9540, UL 9540A, UL 2202, UL 1973, UL 2231-1, UL 1741SB, IEEE 1547/1547.1, NFPA 855, NFPA 69, FCC Part 15B, ICES-003, SRD 2.0.
Specs transcribed from the XCharge GridLink datasheet, 2025-08-14. Aatish Patel co-founded XCharge North America and left the company in September 2026. Specs come from the linked datasheet, not from him. The Charge Sheet takes no fee for this listing.
